Home » Shop » ALUMINIUM HALYARD BLOCK WITH 60 MM SHEAVE

Visit our support website for assembly and operating instructions, detailed technical information, service manuals, spare parts lists, and dealer listings. Click here

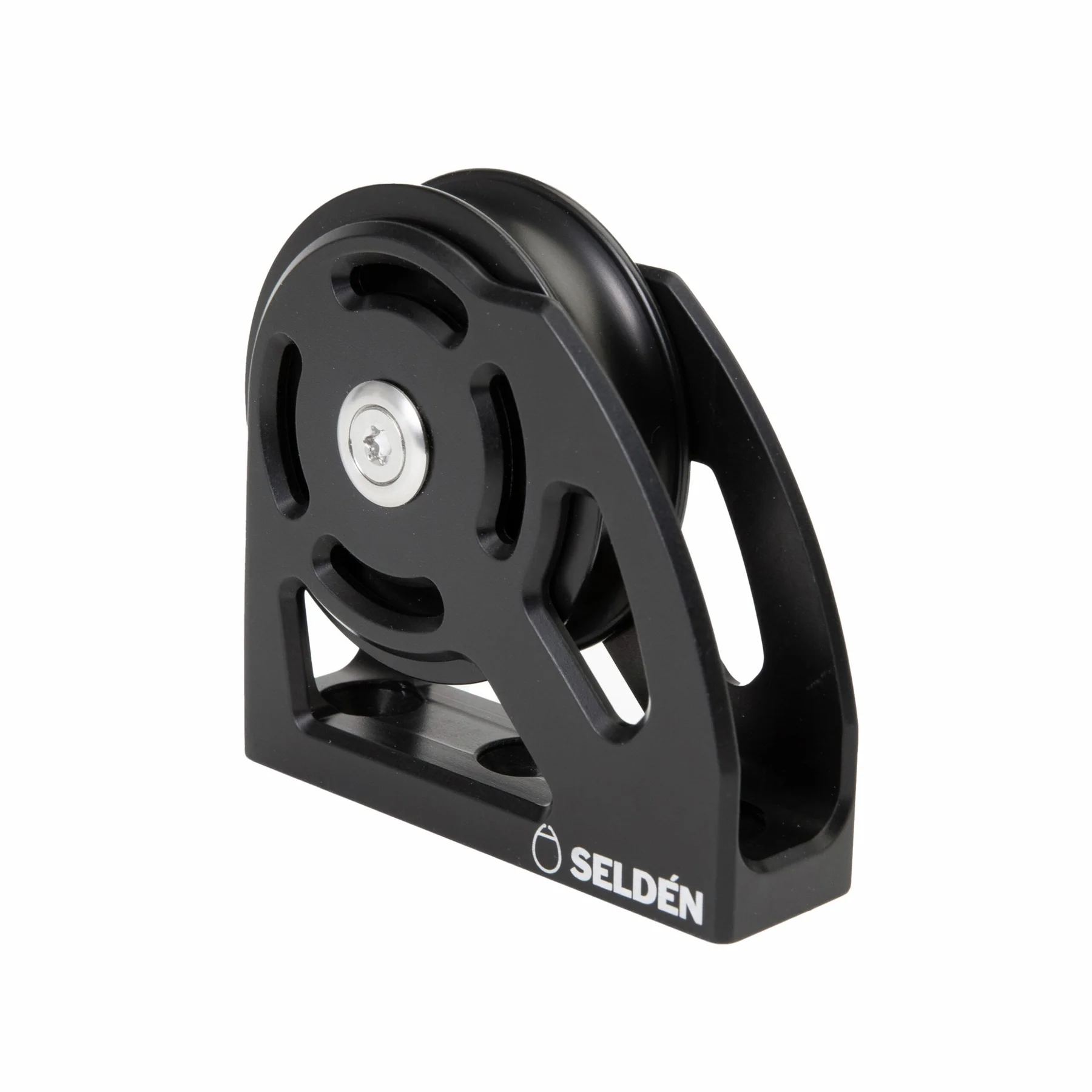

ALUMINIUM HALYARD BLOCK WITH 60 MM SHEAVE

€274.85 Including Vat

SKU: 406-501-13R

Stock: 10

Category: 60 mm Blocks, Plain Bearing Blocks, Blocks, Deck Hardware

Brand: Selden

More Informations

🔒 100% Secure Payments
Your information is protected and secure with us.

Description

Halyard block
A block designed for routing lines 90° – typical for routing a halyard from the mast and aft. Plain bearing sheave with Delrin thrust bearings for low friction even if the line is not perfectly aligned with the sheave.
Sheave Diameter: Ø60 mm
Sheave Material: Aluminium
Holder: Machined and anodized aluminium
Radial Load: Plain bearing
Axial Load: Ø4 mm Delrin thrust bearings

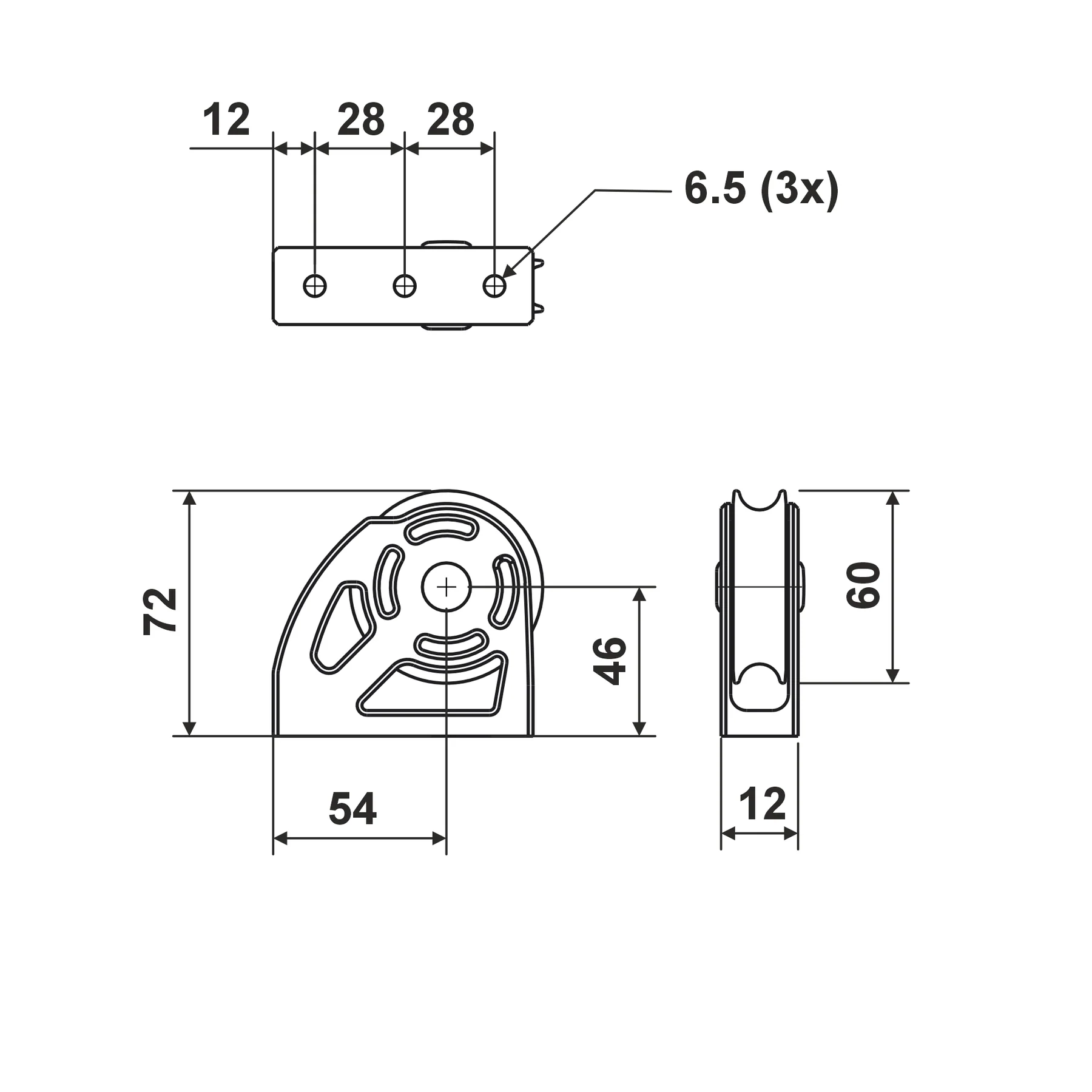

To be mounted with three M6 bolts, c-c between holes; 28 mm
Overall length: 81 mm
Overall height: 77 mm
Overall width: 24 mm
BlockType: Halyard Block
SubType: mastbase
Breaking Load: 2400 kg
Safe working Load: 1200 kg
System: APB60
Max line size: 12 mm
Mounting: 3xM6
